Revolutionizing High-Density Connectivity with the WisGate Edge Ultra, a Full-Duplex Gateway for LoRaWAN®

The efficiency of operations in various sectors, be it agriculture, energy, or smart cities, hinges on seamless and reliable connectivity. Recognizing this critical need, RAKwireless has introduced the RAK7285 WisGate Edge Ultra, a full-duplex LoRaWAN gateway engineered to revolutionize communication in high-density and real-time applications.

Addressing the Core Challenges in High-Density Environments

Consider the complexities of, for example, a 1MW solar PV (Photovoltaic) station, where up to 2560 nodes work in concert, each transmitting vital data points such as power output, voltage, current, and temperature. The primary challenge in such environments is ensuring the swift, real-time transmission of this data, alongside the capability to execute immediate safety commands. The RAK7285 WisGate Edge Ultra is crafted to meet these exacting demands, offering a robust solution that ensures the seamless flow of information and rapid response mechanisms essential in critical scenarios.

The Essence of Full-Duplex Communication

At the core of the RAK7285's innovation lies its full-duplex capability, enabling simultaneous two-way communication.

The transition from traditional half-duplex systems to full-duplex communication in IoT networking marks a significant evolution, especially for high-density and real-time applications. Understanding the essence of full-duplex communication and its differences from half-duplex is crucial for appreciating the advanced capabilities of devices like the RAK7285 WisGate Edge Ultra.

Understanding Full-Duplex Communication

Full-duplex communication allows for simultaneous two-way data transmission between devices. This means that a device can send and receive data at the same time, much like a two-lane highway where traffic flows smoothly in both directions without interference. This capability is particularly vital in scenarios where continuous monitoring and instant response are essential, such as in safety-critical systems in solar PV stations or real-time livestock management in agriculture.

Advantages of Full-Duplex Over Half-Duplex Systems

Traditionally, many communication systems operated on a half-duplex basis, where data transmission could only occur in one direction at a time, akin to a single-lane road where traffic must wait for one direction to clear before the other can proceed. While half-duplex systems are simpler and less expensive, they are prone to delays and lower throughput, particularly in high-density environments where the volume of communication requests is high.

This two-way transmission effectively doubles the potential throughput of a communication channel compared to half-duplex systems. This increase in data flow capacity significantly reduces communication latency, ensuring that critical data is transmitted and received with minimal delay. Full-duplex systems are also better equipped to manage and mitigate data collisions.

The ability to handle high volumes of data with reduced latency and better collision management directly translates to an improved Quality of Service. In IoT applications, where timely and reliable data transmission can be critical, the advantages of full-duplex communication ensure that operational decisions are made efficiently and effectively, based on real-time data.

Beyond the Conventional: Diverse Applications of Full-Duplex LoRaWAN Gateways

Let’s go deeper into the example given earlier as we already have real experience with such a solution:

Enhancing 1MW PV Station Operations

Use Case: Real-Time Data Transmission and Monitoring

In a 1MW PV station, potentially comprising up to 2560 individual solar panels or nodes, the seamless and real-time transmission of data is critical. Each node generates crucial information regarding power output, voltage, current, and temperature. The RAK7285 facilitates the instantaneous gathering and transmission of this data, ensuring that the central management system is continually updated with the latest performance metrics.

Impact: This real-time data flow allows operators to monitor the system's performance closely, identify any inefficiencies or malfunctions promptly, and make data-driven decisions to optimize energy production.

Use Case: Rapid Response to Safety Commands

Safety is paramount in large-scale energy generation facilities. The full-duplex communication enabled by the RAK7285 is particularly beneficial for executing rapid shutdown procedures in emergencies. In the event of a fault, such as a short circuit or system malfunction, the ability to send immediate commands to individual nodes or sections of the PV station can prevent damage to equipment and ensure personnel safety.

Impact: This rapid response capability minimizes the risk of extensive damage and potential downtime, ensuring that the facility can return to optimal operation as quickly as possible.

Use Case: Efficient Management of High-Density Networks

The high-density environment of a 1MW PV Station, with thousands of nodes communicating simultaneously, poses significant challenges in terms of network management and data collision. The RAK7285, with its advanced features like Listen Before Talk and LoRa frame filtering, excels in managing this complex communication landscape, ensuring that data is transmitted efficiently without loss or significant delay.

Impact: The efficient management of the network ensures that each node operates at its best, contributing to the overall efficiency and reliability of the solar power station.

But that is not all that the RAK7285 can help with. The advent of full-duplex LoRaWAN gateways, exemplified by the RAK7285 WisGate Edge Ultra, facilitates a new level of interaction and efficiency in various sectors, illustrating the transformative potential of IoT technology when paired with advanced communication capabilities. Below are specific use cases that highlight the diverse and impactful applications of full-duplex LoRaWAN gateways.

RAK7285 WisGate Edge Ultra

Smart Agriculture

Use Case: Precision Farming and Livestock Monitoring

In the agricultural sector, precision farming relies on collecting vast amounts of data from soil sensors, weather stations, and crop health monitors to make informed decisions. Livestock monitoring involves real-time tracking of animal health, location, and behavior. The RAK7285 gateway supports these applications by enabling continuous data transmission from sensors and immediate actuation of irrigation systems, feed dispensers, or climate control systems based on real-time analytics.

Impact: This results in optimized resource use, increased yields, and enhanced animal welfare, transforming traditional farming into a high-tech, data-driven industry.

Energy Management

Use Case: Distributed Energy Resource (DER) Management

In the energy sector, the integration of distributed energy resources like solar panels, wind turbines, and battery storage is crucial for a sustainable grid. The RAK7285 can facilitate the communication between these resources and the central grid management system, allowing for real-time adjustments to production or storage based on demand, weather conditions, and grid stability requirements.

Impact: This enables more efficient energy distribution, reduces waste, and enhances the reliability of renewable energy sources, contributing to a greener, more sustainable energy landscape.

Smart Cities

Use Case: Urban Environmental Monitoring and Traffic Management

Smart cities represent the forefront of integrating technology to enhance urban infrastructure, services, and quality of life. The RAK7285 WisGate Edge Ultra is strategically designed for high-density urban applications, this full-duplex LoRaWAN gateway is equipped with advanced features like a cavity filter and integrated lightning protection, making it exceptionally suited for environments with significant electromagnetic interference from other urban sources, such as cellular base stations.

The RAK7285 excels in managing extensive networks of sensors that monitor critical urban parameters like air quality and noise levels. The placement of IoT devices in urban settings often brings them close to cellular base stations, which can cause significant radio frequency interference. Here, the RAK7285’s cavity filter proves indispensable. It effectively minimizes out-of-band interference, ensuring that the data transmitted and received by the gateway remains accurate and reliable. This capability is crucial for sensors monitoring air quality and noise levels, where precision is vital for data integrity and subsequent analysis.

For traffic management, the full-duplex capability of the RAK7285 allows it to handle extensive data streams efficiently. It processes and responds to real-time traffic flow information, controlling traffic lights and digital signage without delay. The gateway’s ability to maintain clear communication, even in areas with potential interference from numerous urban sources, ensures that traffic management systems operate optimally, reducing congestion and enhancing urban mobility.

Impact: Sustainable urban environments and enhanced public services. Deploying the RAK7285 WisGate Edge Ultra in smart cities directly addresses the challenges of managing complex, high-density IoT networks. Its full-duplex communication enhances network throughput and reduces latency, essential for the real-time responsiveness required in urban operations. Moreover, the advanced cavity filter technology of the RAK7285 makes it an ideal choice for urban environments plagued by high levels of RF interference. This feature ensures that the gateway can operate close to cellular base stations without the risk of data corruption, thereby supporting the reliability and effectiveness of smart city applications from environmental monitoring to traffic management.

Disaster Management

Use Case: Flood Monitoring and Early Warning Systems

In regions prone to flooding, early warning systems can save lives and reduce economic losses. The RAK7285 can support networks of water level and weather sensors spread across vast areas, ensuring the rapid transmission of data to central monitoring stations. This allows for timely warnings to be issued and for emergency services to be coordinated more effectively.

Impact: Enhanced preparedness and response capabilities minimize the impact of natural disasters on communities and infrastructure.

Industrial Automation

Use Case: Predictive Maintenance in Manufacturing

In manufacturing, predictive maintenance can prevent costly downtime by identifying equipment issues before they cause failures. The RAK7285 enables the continuous monitoring of machinery health through vibration, temperature, and performance data. This data is analyzed in real time, and maintenance can be scheduled proactively without interrupting production.

Impact: This leads to increased efficiency, lower maintenance costs, and higher product quality, driving competitiveness in the manufacturing sector.

Designed for Tomorrow, Delivered Today

The RAK7285 is not just another piece of technology; it's a thoughtfully designed, future-ready device that embodies industrial-grade durability and performance. Housed in a rugged IP67-rated aluminum enclosure, it ensures unwavering performance even in the harshest conditions. The device significantly enhances network reach and clarity, making it an ideal choice for expansive operations.

  • Innovative Cavity Filter Technology: The integrated cavity filter minimizes out-of-band interference, particularly from cellular base stations, ensuring interference-free and seamless data transmission.
  • Integrated Lightning Protection: The advanced cavity filter also comes with built-in lightning protection, eliminating the need for additional arrestors and ensuring your network’s resilience in all weather conditions.
  • Extensive Connectivity: Boasting an 8-channel LoRa Concentrator, GPS, and Ethernet backhaul plus 30 dBm TX power, the device extends the reach and resilience of networks.

In Conclusion

The RAK7285 WisGate Edge Ultra is designed with a keen understanding of the intricate needs of modern, high-density, real-time responsive networks. Whether it's for managing vast solar PV installations, optimizing agricultural operations, or any other scenario that demands efficient, reliable communication, the RAK7285 is poised to transform the landscape of connectivity, ushering in a new era of operational excellence.

By choosing the RAK7285, stakeholders are not merely adopting a cutting-edge communication device; they're embracing a comprehensive solution tailored to address the multifaceted challenges of high-density IoT environments. This commitment to innovation and problem-solving is why RAK7285 was created: to offer tangible solutions to real-world problems, ensuring that operations can run more efficiently, safely, and reliably than ever before.

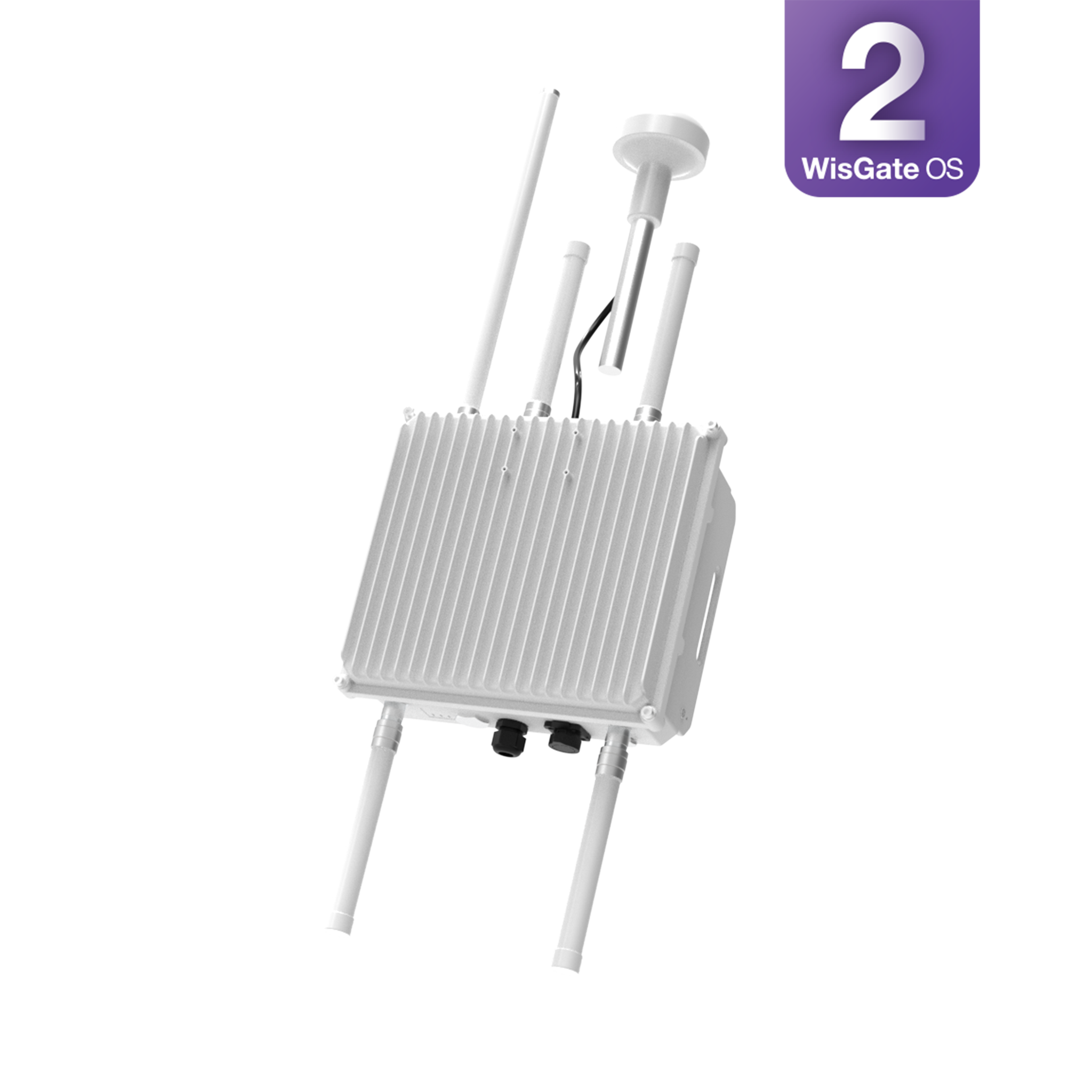

WisGate Edge Ultra Full-duplex

RAK7285/RAK7285C

Buy now

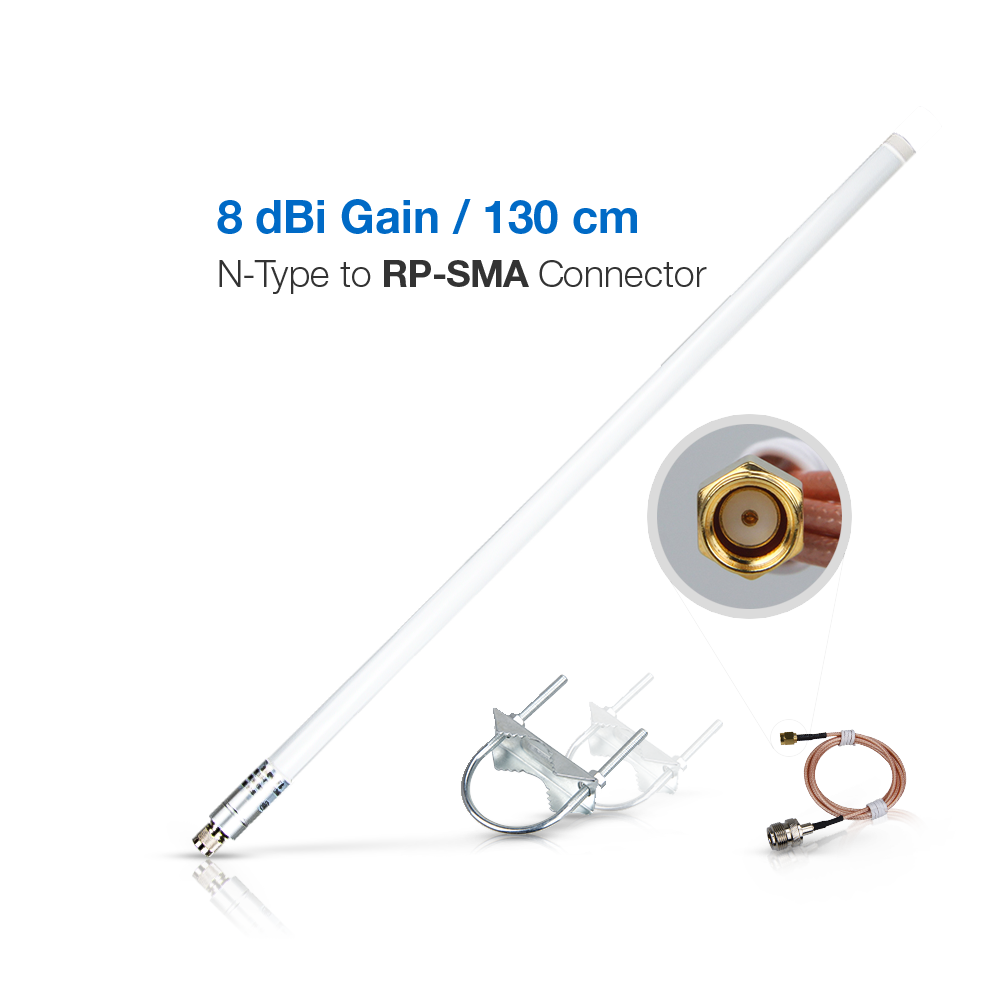

8dBi Fiberglass Antenna

8dBi Fiberglass Antenna

Buy now

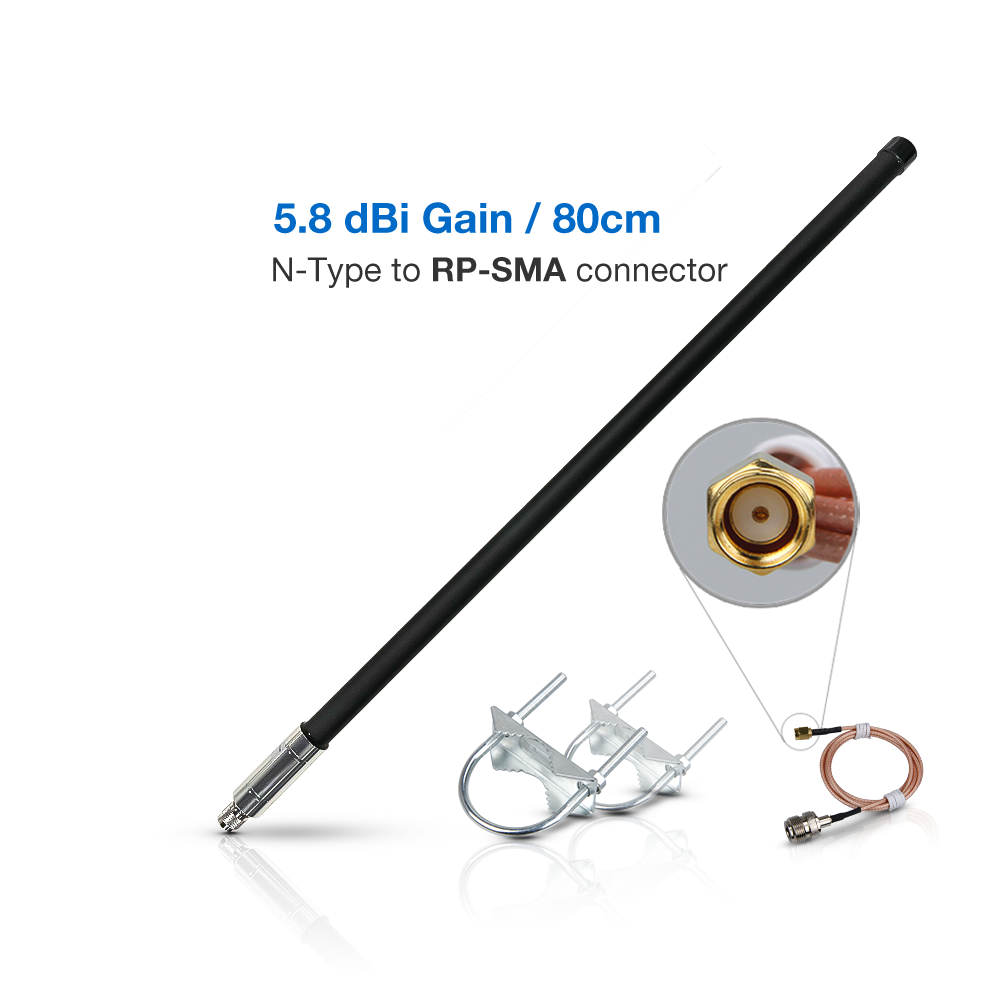

5.8dBi Fiberglass Antenna
